Flexball

Flexball 4500-MM22

$11,420.00 AUD
$11,420.00 AUD
Sale Sold out
Free Shipping Australia wide.
CANBus Extension Harness Length

This system controls 2x Mechanical Engines and 2x Mechanical Gearboxes. It connects via CANBus to 2x Flexball 4500 Dual Throttle Station.

Experience the precision of Italian-designed Flexball 4500-MM22 throttle control systems, now available in Australia. Perfect for pleasure and commercial vessels with mechanical engine control systems and mechanical gearboxes, these controls are easy to replace and install. Upgrade to Flexball for quality throttle control.

The Flexball MM series offers versatile compatibility with a wide range of marine engines, including Cummins, Caterpillar, FPT, Doosan, Yanmar, Scania, Hyundai, MTU, MAN, and Volvo. These controls are the ideal replacement for existing and unreliable throttle systems, such as Hynautic systems, Twin Disc systems, ZF systems, and Glen Dinning systems. Upgrade to the Flexball MM series for reliable and precise throttle control on your vessel.

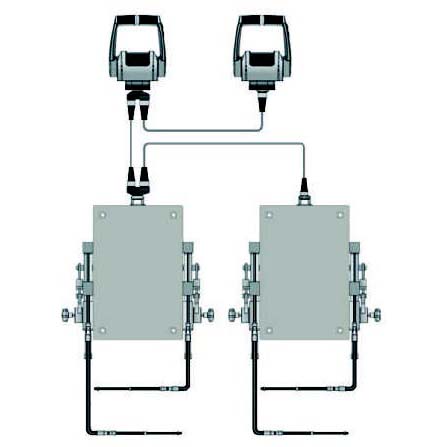

The 4500-MM22 system is multivolt 9-32V. The 2x actuator boxes are mounted within the engine room and 2x morse cables (per actuator box) are connected between the actuator box and the engine throttle and gearbox actuator for both the port and starboard engine. The 4500-MM22 system also can override the electric motors and move the levers on the side of the actuator box by hand in the event of a power failure, so you know you will always be able to get home.

The 4500-MM22 kit includes everything you need electrically. The only component not included are the 4x morse cables which connect between actuator boxes to throttles and actuator boxes to gearboxes. We always highly recommend these be made locally to custom length.


KEY FEATURES

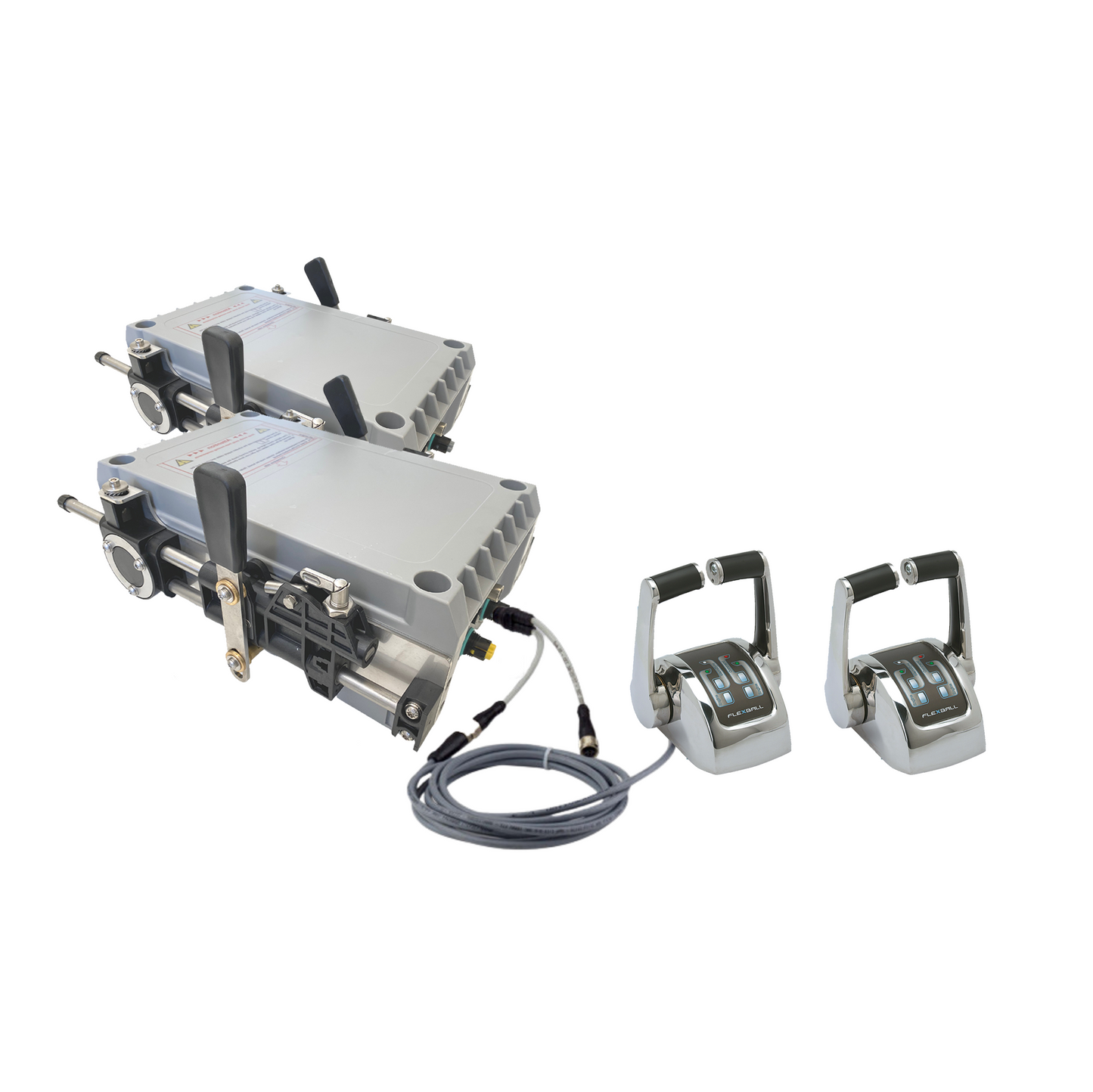

  • INCLUDED IN 4500-MM22 KIT
  • 2x Actuator Boxes - 9-32V
  • 2x Actuator Box Supply Plugs

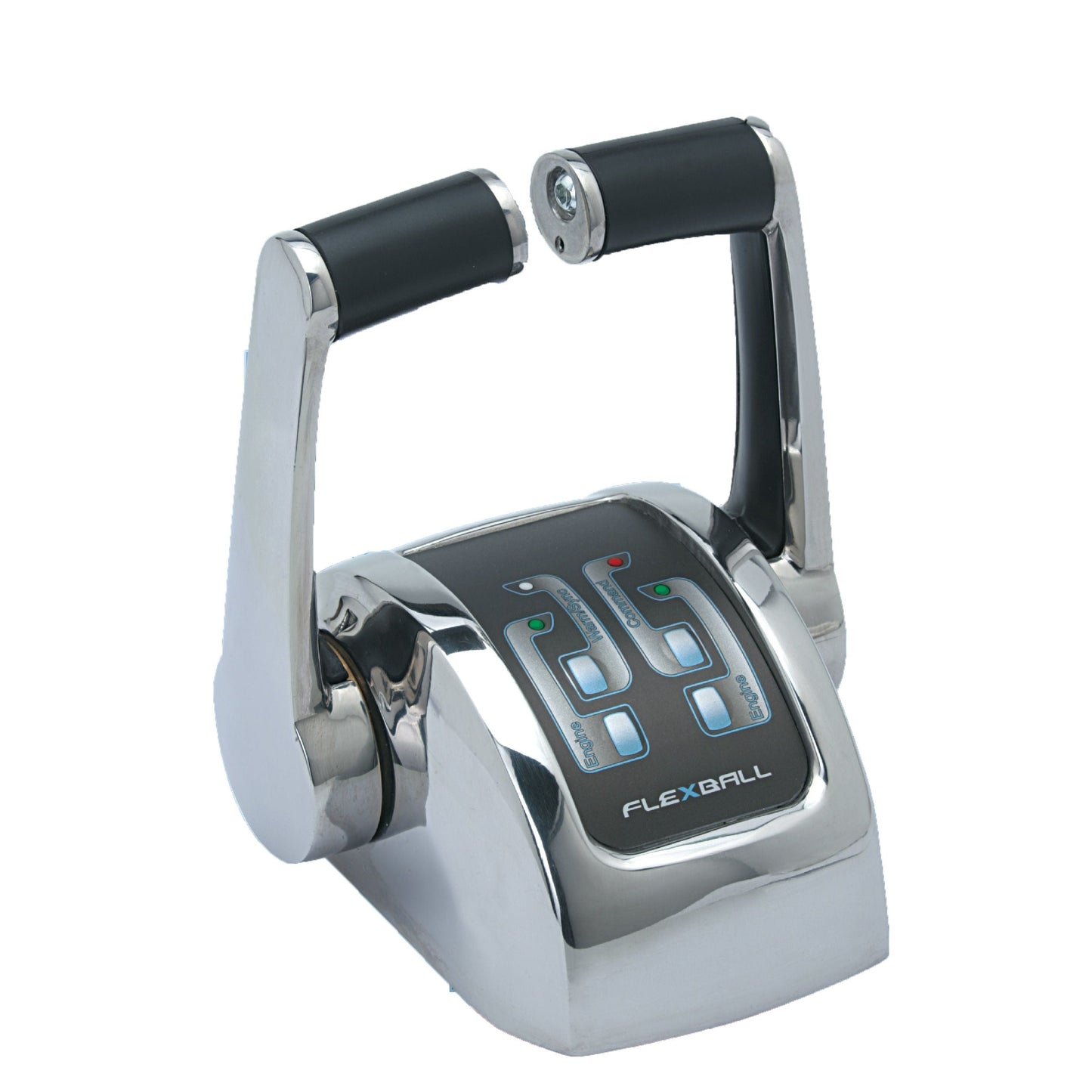

  • 2x 4500 Dual Lever Throttle
  • 2x T-Splitter
  • 1x 3m CANBus Extension Harness
  • 2x 10m CANBus Extension Harness
  • 1x Installation Manual
  • Note: Morse cables not included


Download the Product Brochure


Note: photographs for illustration purposes only.

Note: Systems to suit sterndrives requiring trim controls please contact THT for a custom quote.
