Flexball

Flexball 4500-MM11

$7,390.00 AUD
$7,390.00 AUD
Sale Sold out
Free Shipping Australia wide.
CANBus Extension Harness Length

This system controls 1x Mechanical Engine and 1x Mechanical Gearbox. It connects via CANBus to 1x Flexball 4500 Single Throttle Station.

The Flexball 4500-MM11 throttle control system is crafted for boats equipped with mechanical engine control and mechanical gearboxes. This Italian-designed system is built to ensure smooth and reliable operation in any marine environment. Ideal for both pleasure and commercial vessels, including trawlers, pilot vessels, commercial fishing vessels, and tourism boats, the Flexball 4500-MM11 offers precision control and durability to enhance your vessel's performance.

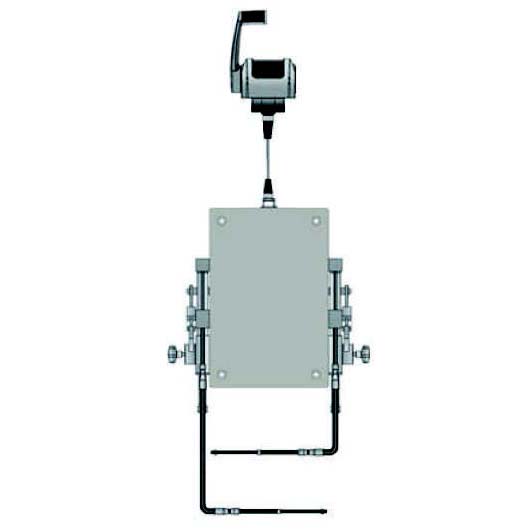

The 4500-MM11 system is multivolt 9-32V. The actuator box is mounted within the engine room and 2x morse cables are connected between the actuator box and the engine throttle and gearbox actuator. The 4500-MM11 system also can override the electric motors and move the levers on the side of the actuator box by hand in the event of a power failure, so you know you will always be able to get home.

The 4500-MM11 kit includes everything you need electrically. The only component not included are the 2x morse cables which connect between actuator box to the throttle and the actuator box to the gearbox. We always highly recommend these be made locally to custom length.

All mechanical control systems feature a "release" pin at the actuator box, allowing for manual override in case of an emergency, and providing an added layer of safety.


KEY FEATURES

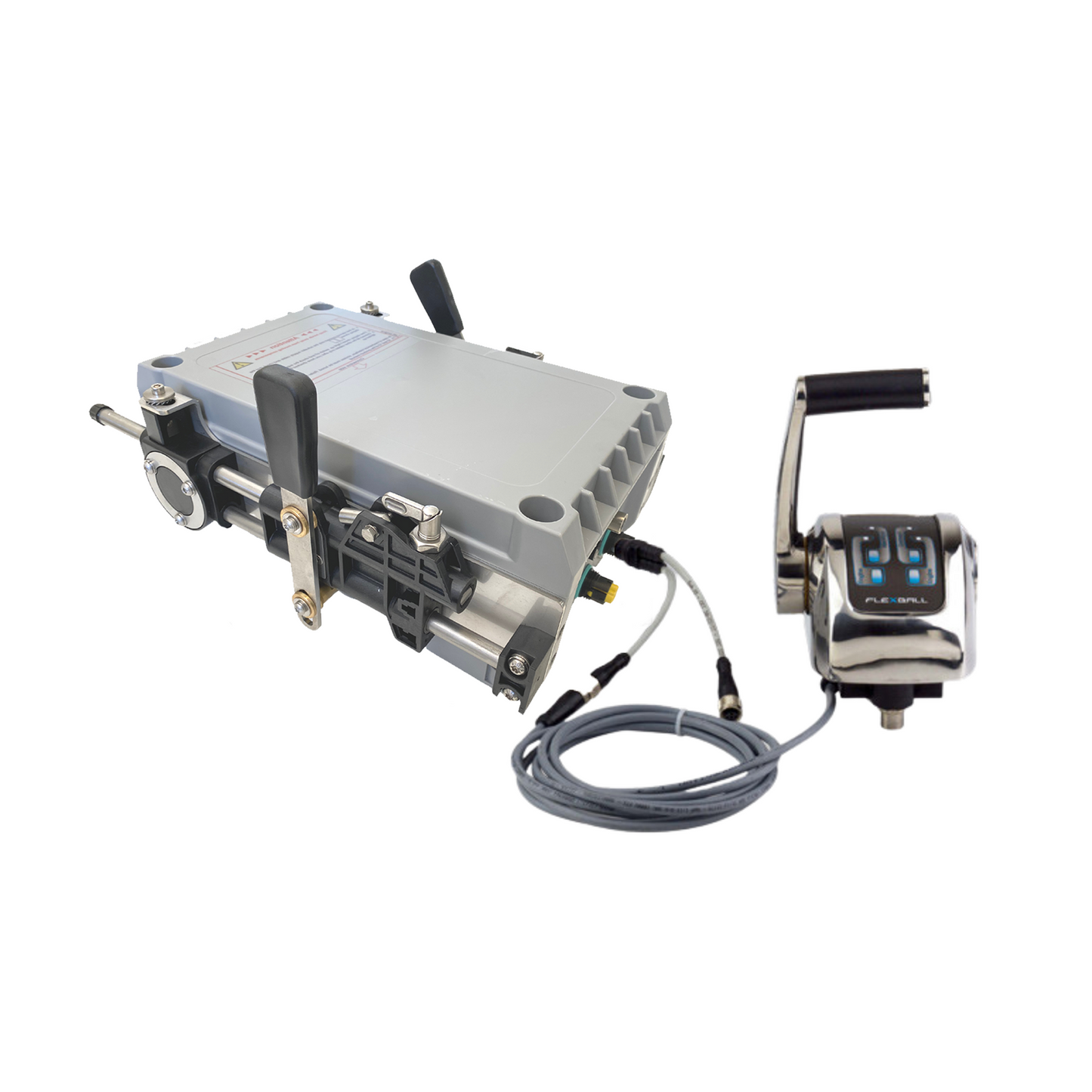

  • INCLUDED IN 4500-MM11 KIT
  • 1x Actuator Box - 9-32V

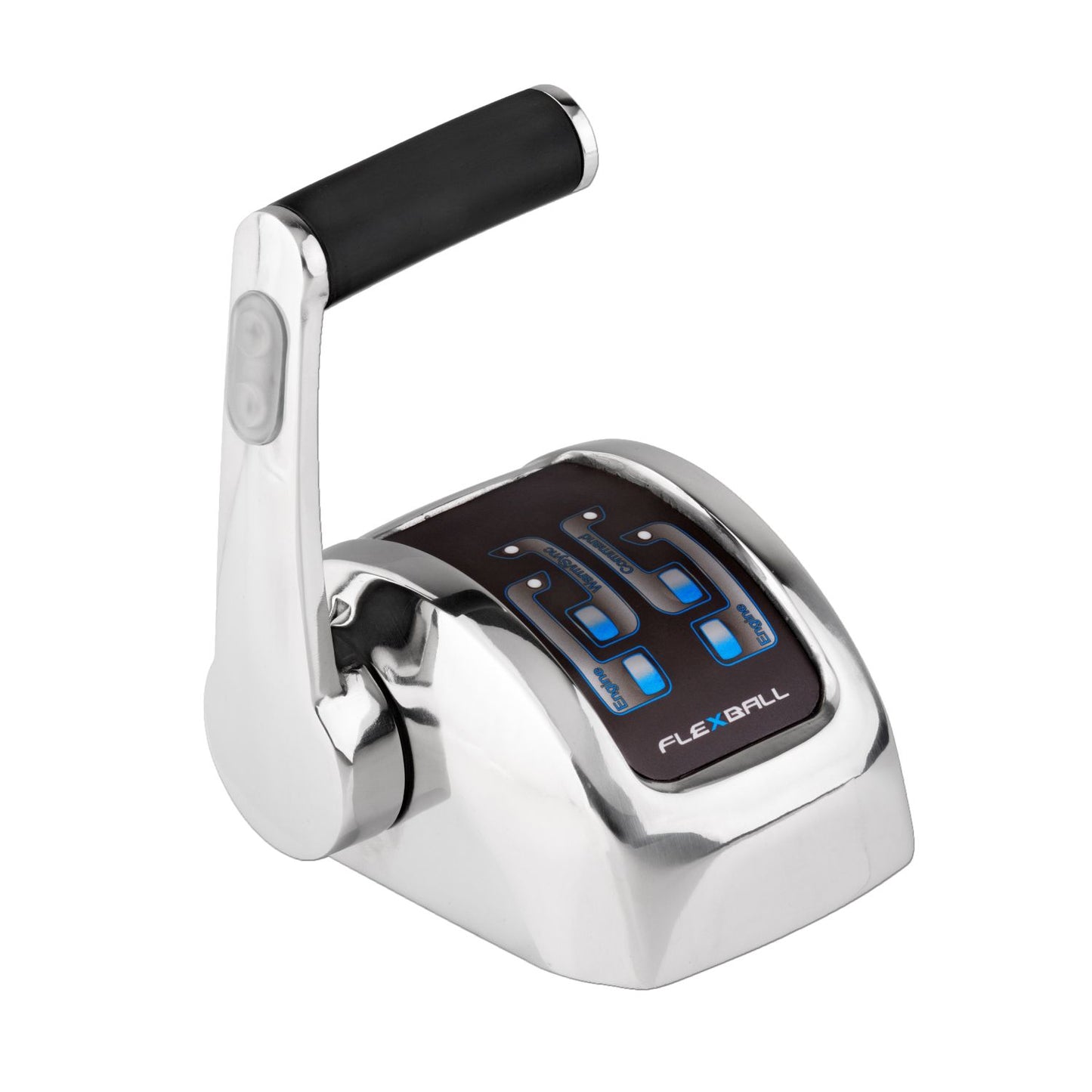

  • 1x 4500 Single Lever Throttle
  • 1x Actuator Box Supply Plug
  • 1x 10m CANBus Extension Harness
  • 1x Installation Manual
  • Note: Morse cables not included


Download the Product Brochure


Note: photographs for illustration purposes only.

Note: Systems to suit sterndrives requiring trim controls please contact THT for a custom quote.
