Flexball 4500-ME23

Regular price $12,240.00 AUD
Regular price Sale price $12,240.00 AUD
Sale Sold out
Free Shipping Australia wide.
Gearbox Actuation Type
CANBus Extension Harness Length


If you don't know your Gearbox Actuation Type, please click here.

This system controls 2x Mechanical Engine and 2x Electronic Gearbox. It connects via CANBus to 3x Flexball 4500 Dual Throttle Station.

The Flexball 4500-ME23 throttle control system is a durable and precise solution for your vessel. With its solid build and precision controls, it offers reliability and ease of use. This system is designed to easily replace and install any old throttle controls, making it a versatile choice. Compatible with all makes and models of marine engines, the Flexball 4500-ME23 ensures smooth and efficient control for your marine vessel.

Suitable solutions for all engines including Caterpillar, Cummins, Yanmar, Scania, FPT, MT, MAN, Volvo, Doosan, Hyundai, and more. A trolling valve option is also available.

All mechanical control solutions have a “release” pin to allow for manual override at the actuator box in the event of an emergency, which is an excellent safety feature.

The 4500-ME23 kit includes all components required for connection, except for the morse cable required to connect between the actuator box and the engine throttle, which we advise be custom made to specific length for the vessel.


  • 2x Actuator Box - 9-32V

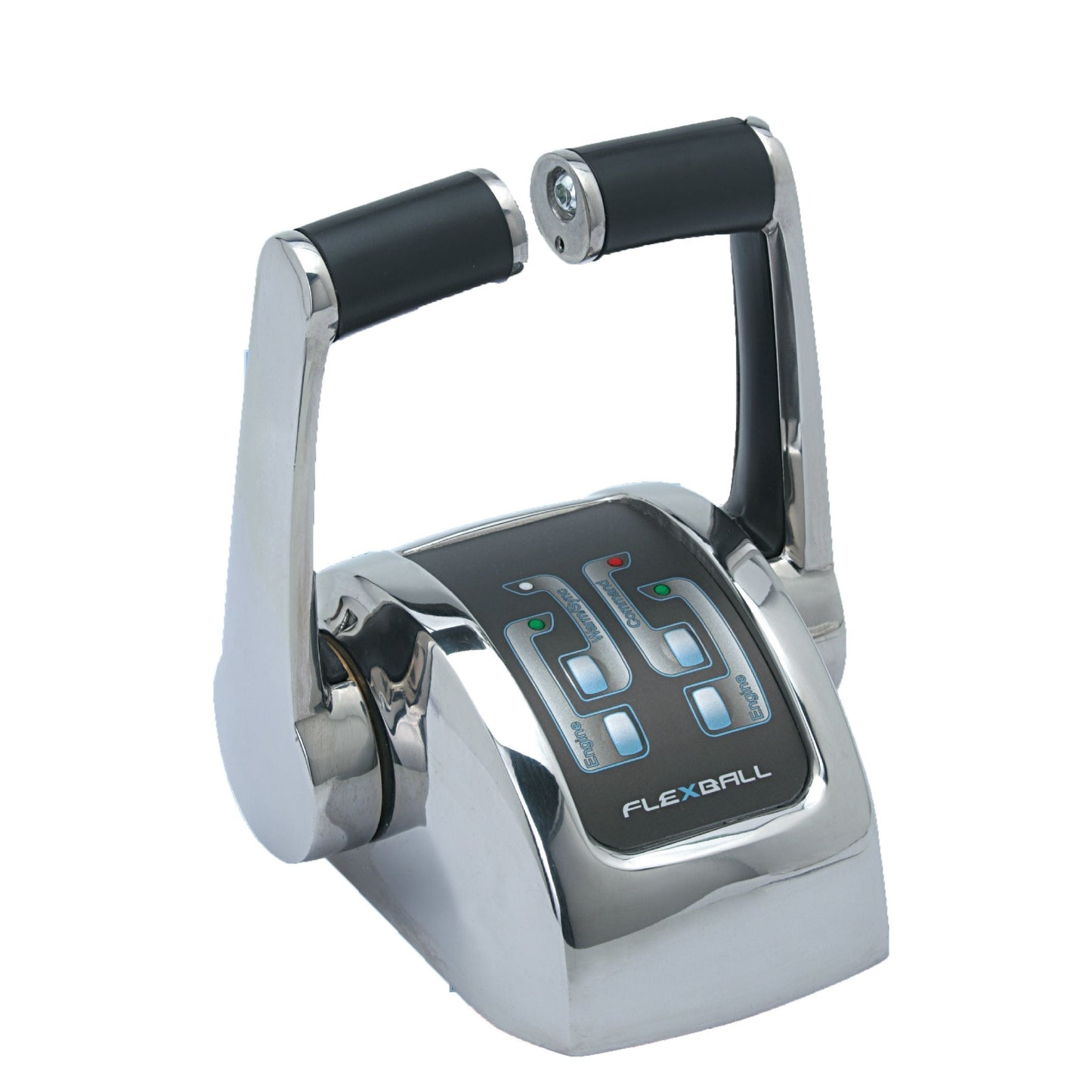

  • 3x 4500 Dual Lever Throttle
  • 3x T-splitter
  • 2x Actuator Box Supply Plug
  • 1x 3m Data Transmission Cable
  • 3x 10m CANBus Extension Harness
  • 2x 5m Gearbox Solenoid Harness
  • 1x Installation Manual
  • Note: Mechanical Morse cable required between actuator box and engine throttle is not included

Download the Product Brochure

Note: photographs for illustration purposes only.

Note: Systems to suit sterndrives requiring trim controls please contact THT for a custom quote.
