Flexball 4500-ME11

If you don't know your Gearbox Actuation Type, please click here.

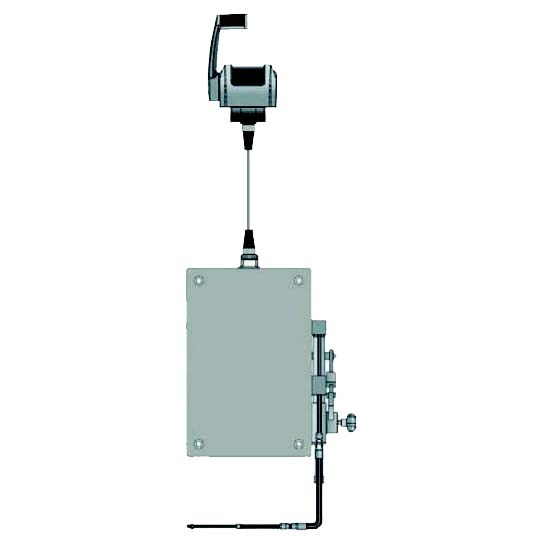

This system controls 1x Mechanical Engine and 1x Electronic Gearbox. It connects via CANBus to 1x Flexball 4500 Single Throttle Station.

Designed with Italian precision and engineering, the Flexball 4500-ME11 throttle controls are crafted to endure the challenges of marine environments, ensuring years of reliable operation. Simple to install and suitable for a variety of marine engines, our controls are an ideal option for boat owners seeking to enhance their vessel's performance.

The Flexball 4500-ME11 throttle control system is designed for vessels equipped with older mechanical engines and newer gearboxes. Featuring a mechanical potentiometer with an arm for physical RPM control, this system is ideal for boats with specific engine requirements.

The actuator box is intended for engine room mounting, accommodating a push-pull cable length of up to 5 meters. Gearbox control is facilitated by a standard 5-meter electrical harness connected to the gearbox. Trolling options are also available, and a single Flexball ME actuator box can effectively manage one or two engines in a vessel.

The 4500-ME11 kit includes all components required for connection, except for the morse cable required to connect between the actuator box and the engine throttle, which we advise be custom-made to specific lengths for the vessel.

INCLUDED IN 4500-ME11 Kit

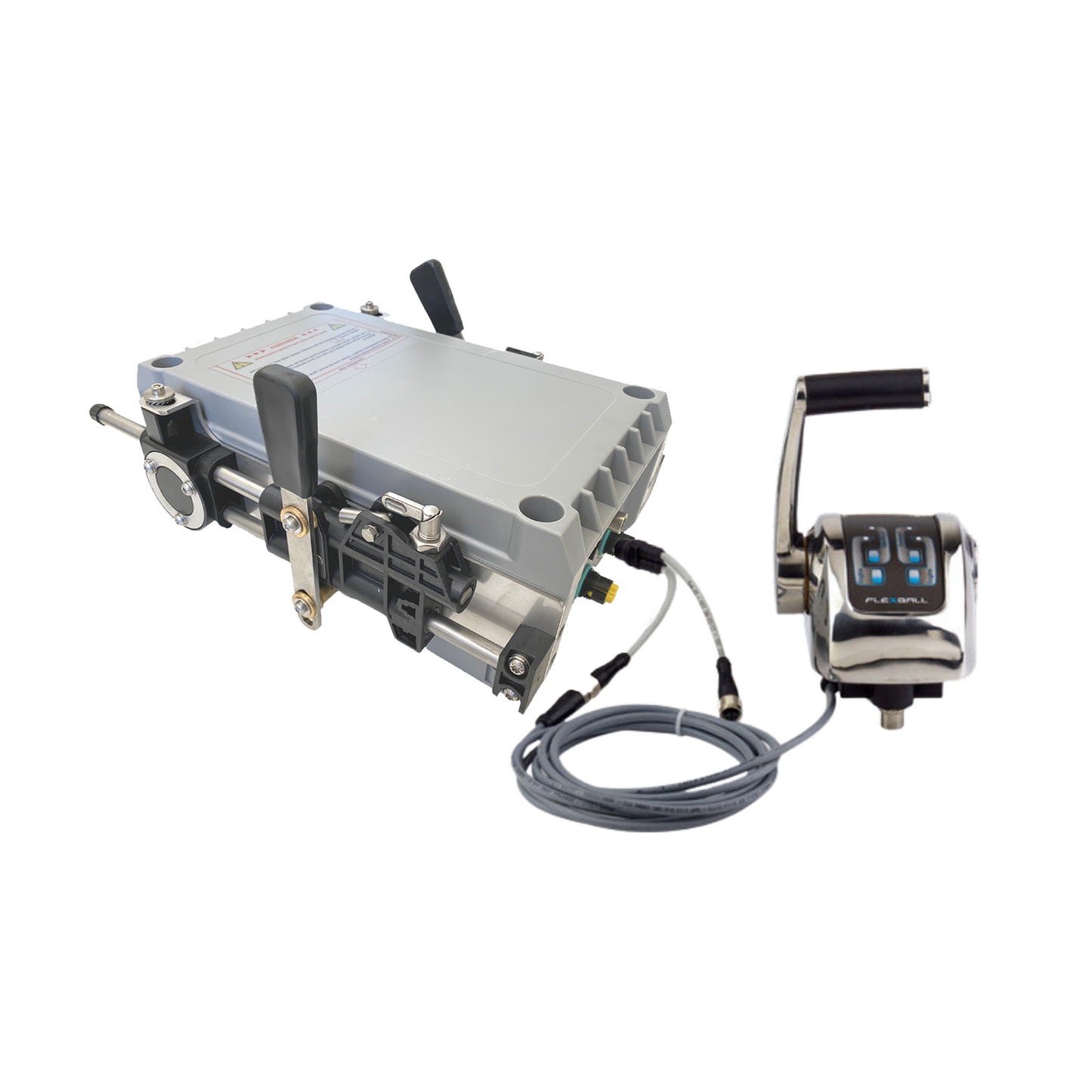

• 1x Actuator Box - 9-32V

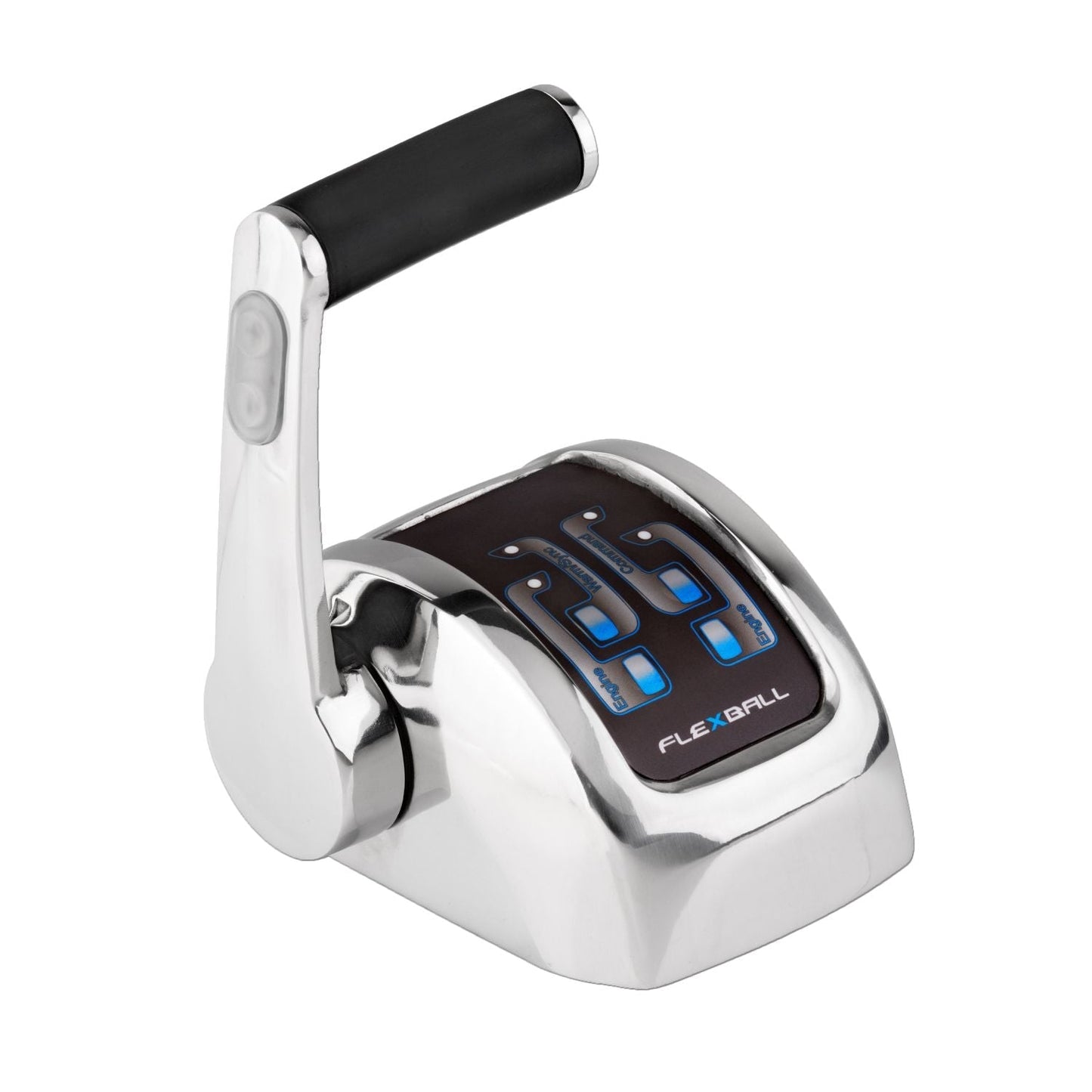

• 1x 4500 Single Lever Throttle
• 1x Actuator Box Supply Plug
• 1x 10m CANBus Extension Harness
• 1x 5m Gearbox Solenoid Harness
• 1x Installation Manual
• Note: Mechanical Morse cable required between actuator box and engine throttle is not included

Download the Product Brochure

Note: photographs for illustration purposes only.

Note: Systems to suit sterndrives requiring trim controls please contact THT for a custom quote.
