Flexball 4500-EM23

If you don't know your Engine Throttle Input Type, please click here.

This system controls 2x Electronic Engine and 2x Mechanical Gearbox. It connects via CANBus to 3x Flexball 4500 Dual Throttle Station.

Installation is easy with a multi-volt 9-32V voltage input only required to power the actuator box. All throttle stations are connected via a single CANBus harness connected in a “daisy chain” arrangement for incredible ease of connection. An unlimited number of throttle control stations can be added to all Flexball systems.

The Flexball 4500-EM23 throttle systems are designed to operate via a relay connection to the engine key ON position. Every time the Flexball system is “powered up”, it automatically reverts to the NEUTRAL and IDLE position, regardless of whether the engine is off with high RPM or the gearbox is engaged in either direction - An excellent safety feature.

All Flexball throttles are supplied standard with a “start interlock” safety function to ensure engines will not start if the gearbox is in gear. This Italian-designed and built system from Turin, Italy, is a quality and reliable solution.

Flexball systems are perfect to replace any existing and unreliable throttle systems, including Hynautic hydraulic control systems, Twin Disc EC200 and EC300 systems, ZF Micro Command, Smart Command or Clear Command systems, NHK KE4 (KE-4) or KE6 (KE-6) throttle systems or Glendinning throttle control systems.

INCLUDED IN 4500-EM23 Kit

• 1x Actuator Box - 9-32V

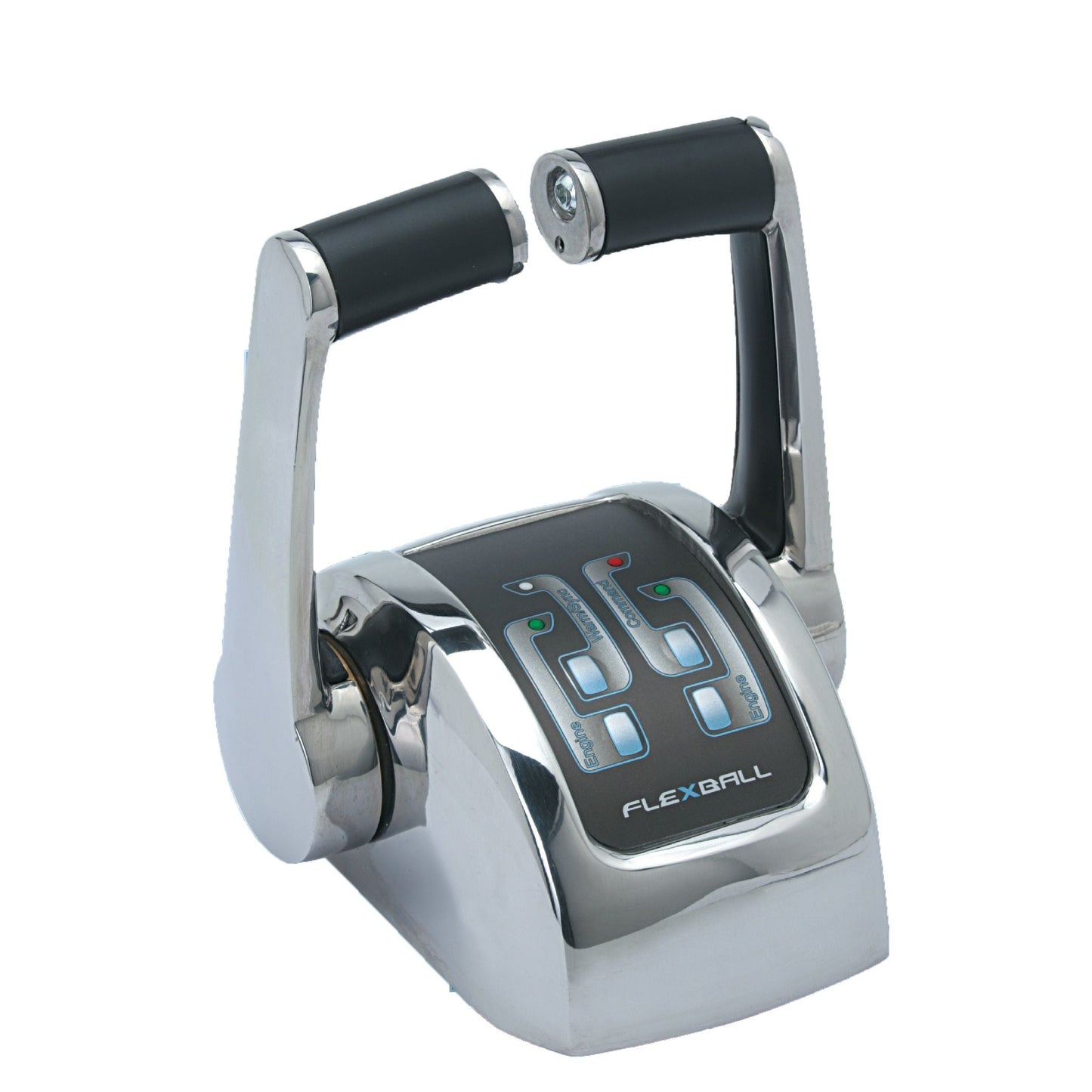

• 3x 4500 Dual Lever Throttle
• 3x T-splitter
• 1x Actuator Box Supply Plug
• 1x 3m Data Transmission Cable
• 3x 10m CANBus Extension Harness
• 2x 5m Engine Throttle Harness
• 1x Installation Manual

Download the Product Brochure

*PLEASE NOTE

This is a special order item and will take approximately 12 weeks lead time from date of order. We will be in touch with you to discuss your engine requirements in detail.

Note: Mechanical Morse cable required between actuator box and gearbox actuator is not included.

Note: photographs for illustration purposes only.

Note: Systems to suit sterndrives requiring trim controls please contact THT for a custom quote.
