Flexball 4500-EM22
If you don't know your Engine Throttle Input Type, please click here.
This system controls 2x Electronic Engine and 2x Mechanical Gearbox. It connects via CANBus to 2x Flexball 4500 Dual Throttle Station.
The 4500-ME22 system is compatible with a wide range of voltages, from 9V to 32V. The actuator box is installed in the engine room and electronically connects to the engine throttle via fly-by-wire technology, while also mechanically connecting to the gearbox actuator.
Gearbox control is handled by a mechanical actuator located on the side of the actuator box. A short mechanical Morse cable is connected from this actuator to the gearbox actuator (Please note: Morse Cable is not included in the package).
The 4500-EM22 kit includes all components required for connection, except for the morse cable required to connect between the actuator box and the gearbox selector, which we advise be custom-made to specific lengths for the vessel.
Currently installed in any and all pleasure and commercial applications, including trawlers, pilot vessels, commercial fishing vessels, and tourism boats, to name a few, the Flexball system is a reliable solution.
One actuator box can manage either single or twin-engine vessel control.
INCLUDED IN 4500-EM22 Kit
- 1x Actuator Box - 9-32V

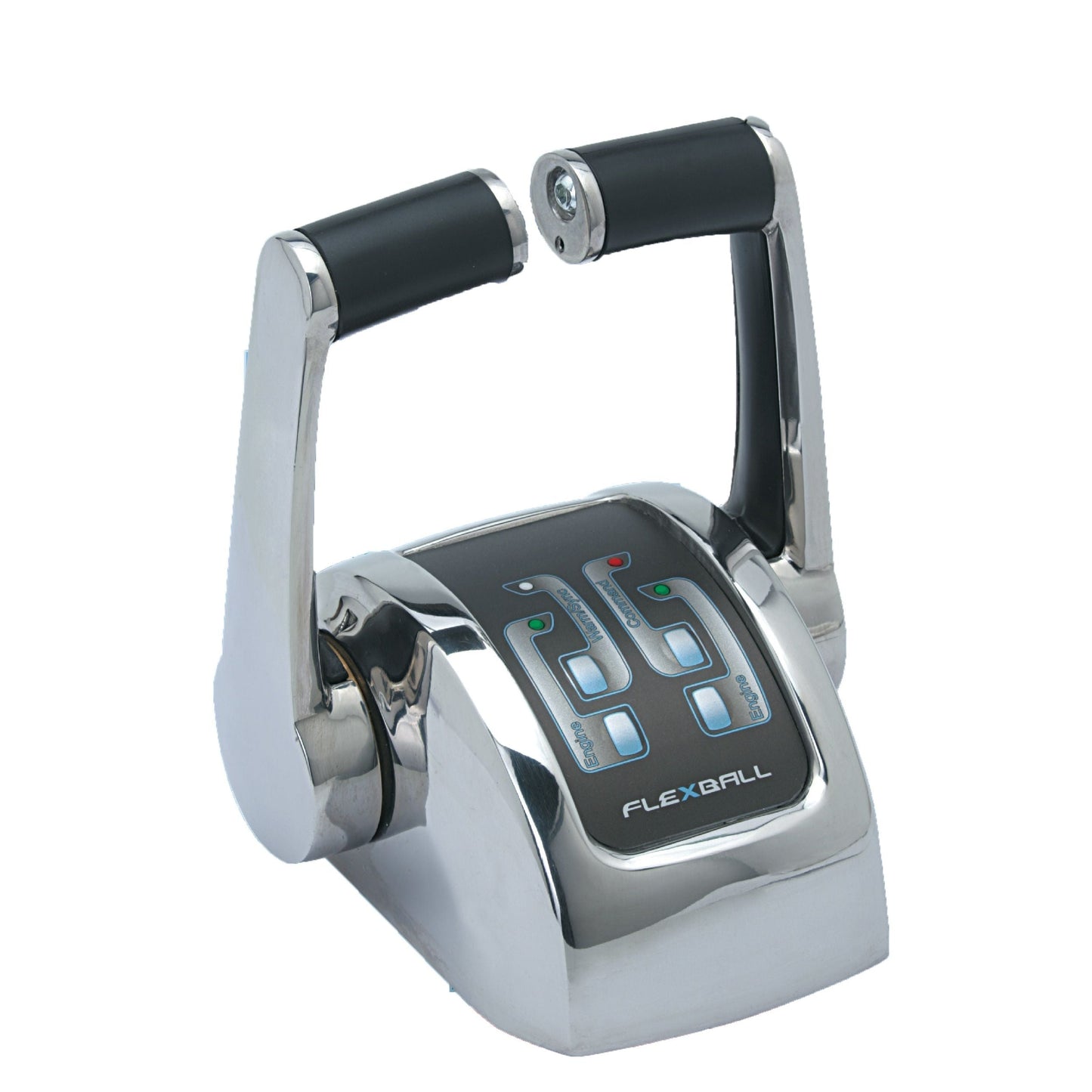

- 2x 4500 Dual Lever Throttle
- 2x T-splitter
- 1x Actuator Box Supply Plug
- 1x 3m Data Transmission Cable
- 2x 10m CANBus Extension Harness
- 2x 5m Engine Throttle Harness
- 1x Installation Manual
Download the Product Brochure
*PLEASE NOTE
This is a special order item and will take approximately 12 weeks lead time from date of order. We will be in touch with you to discuss your engine requirements in detail.
Note: Mechanical Morse cable required between actuator box and gearbox actuator is not included.
Note: photographs for illustration purposes only.
Note: Systems to suit sterndrives requiring trim controls please contact THT for a custom quote.
