Flexball 4500-EM14

Regular price $10,690.00 AUD
Regular price Sale price $10,690.00 AUD
Sale Sold out
Free Shipping Australia wide.
Engine Throttle Input Type
CANBus Extension Harness Length

If you don't know your Engine Throttle Input Type, please click here.

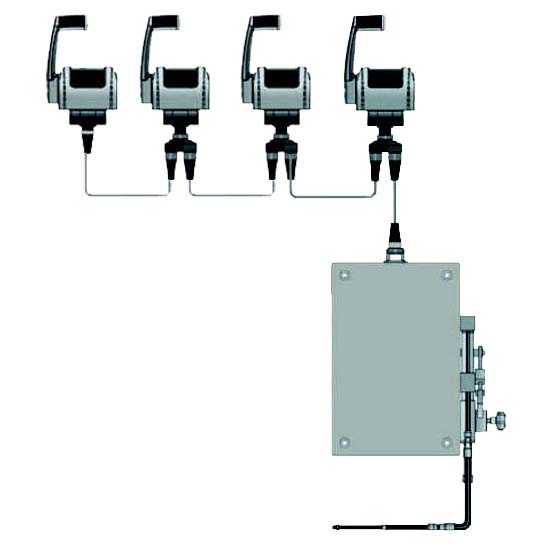

This system controls 1x Electronic Engine and 1x Mechanical Gearbox. It connects via CANBus to 4x Flexball 4500 Single Throttle Station.

Crafted with Italian precision and engineering, the Flexball 4500-EM14 throttle system is built to withstand the demands of marine environments, ensuring years of reliable operation. Easy to install and compatible with a variety of marine engines, our controls are the perfect choice for boat owners looking to boost their vessel's performance.

The Flexball EM system is perfect for modern electronic engines combined with older mechanical actuated gearboxes. It's compatible with all electronic engine makes and models and supports a range of throttle inputs, including adjustable Voltage (0.5-4.5V), Amperage (4-20milliamp), CANBus, and PWM (Pulse Width Modulation).

Upgrade your vessel with Flexball—say goodbye to old, unreliable throttle controls. Replace outdated systems from ZF, Hynautic, Twin Disc, and Glen Dinning with our reliable, state-of-the-art solutions. The Flexball throttle controls can be installed in any pleasure and commercial applications, including trawlers, pilot vessels, commercial fishing vessels, and tourism boats, to name a few, the Flexball system is a reliable solution.

All Flexball systems are supplied standard with a “start interlock” safety function to ensure engines will not start if the gearbox is in gear. This Italian-designed and built system from Turin, Italy, is a quality and reliable solution.

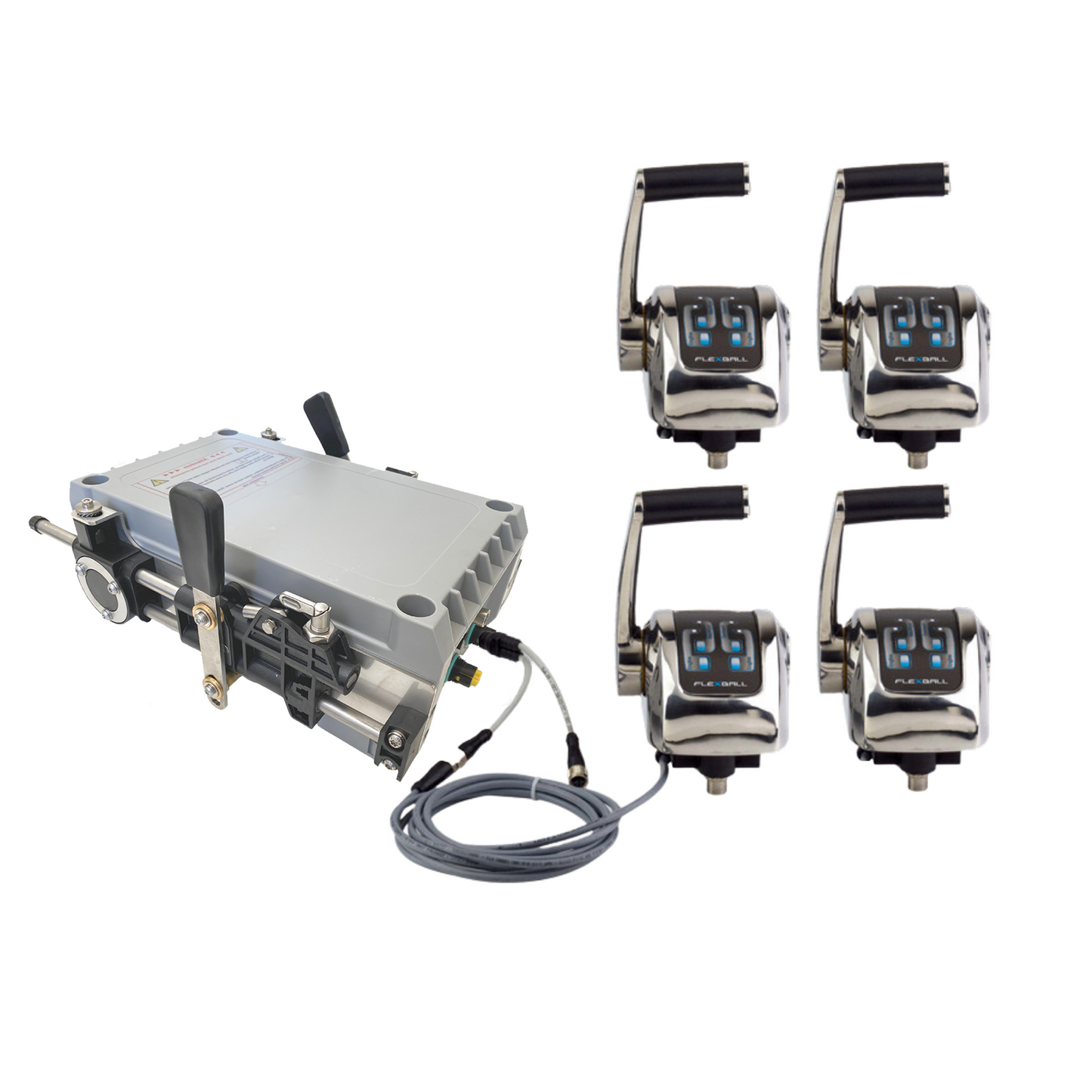

  • 1x Actuator Box - 9-32V

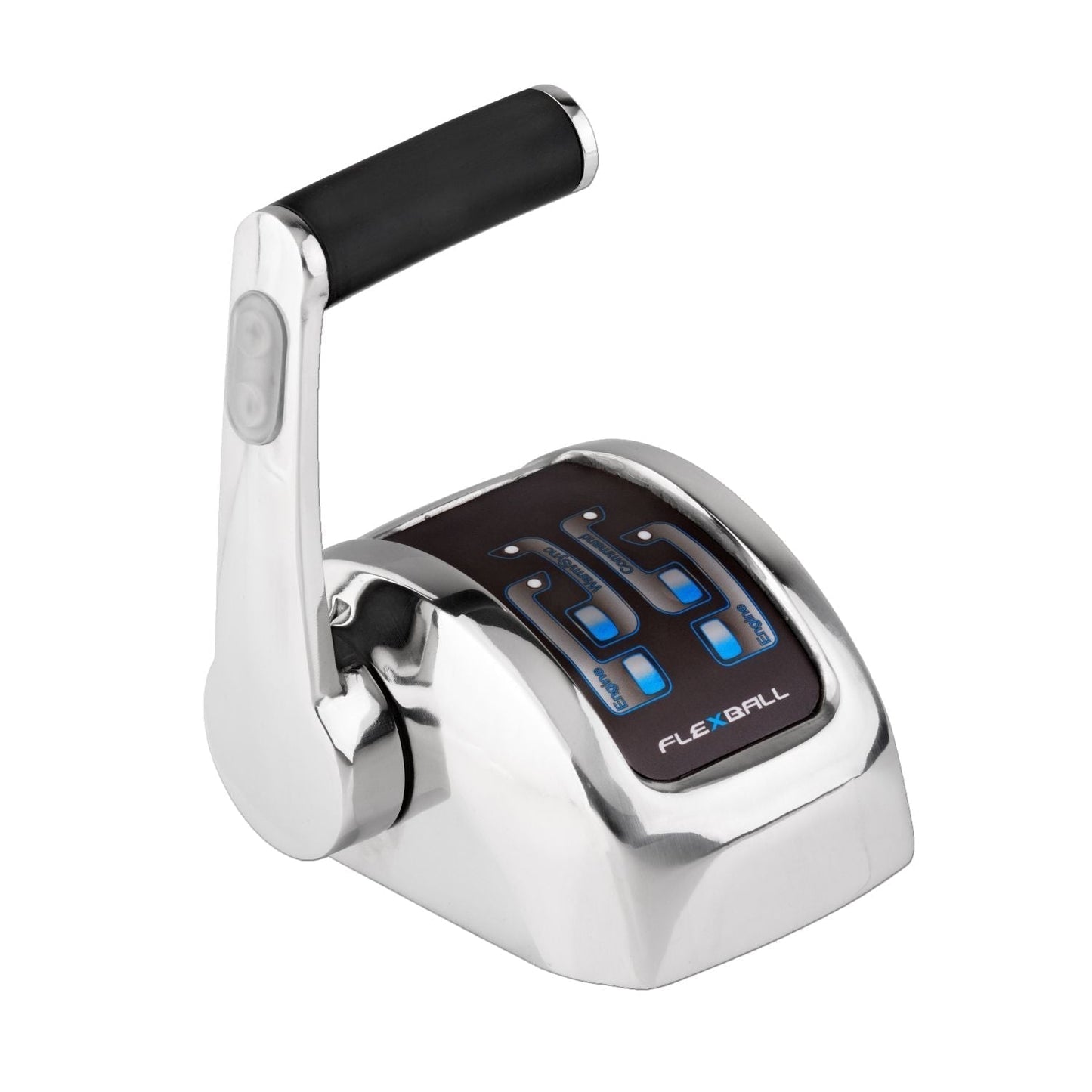

  • 4x 4500 Single Lever Throttle
  • 3x T-splitter
  • 1x Actuator Box Supply Plug
  • 4x 10m CANBus Extension Harness
  • 1x 5m Engine Throttle Harness
  • 1x Installation Manual

Download the Product Brochure



This is a special order item and will take approximately 12 weeks lead time from date of order. We will be in touch with you to discuss your engine requirements in detail.

Note: Mechanical Morse cable required between actuator box and gearbox actuator is not included.

Note: photographs for illustration purposes only.

Note: Systems to suit sterndrives requiring trim controls please contact THT for a custom quote.
