Flexball

Flexball 4500-EM13

$9,290.00 AUD
$9,290.00 AUD
Sale Sold out
Free Shipping Australia wide.
Engine Throttle Input Type
CANBus Extension Harness Length

If you don't know your Engine Throttle Input Type, please click here.

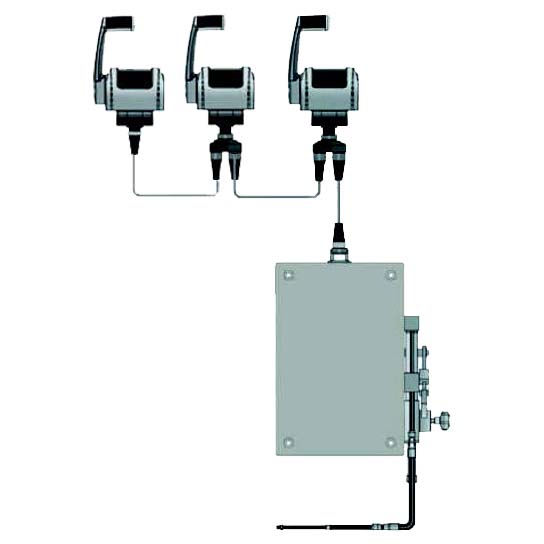

This system controls 1x Electronic Engine and 1x Mechanical Gearbox. It connects via CANBus to 3x Flexball 4500 Single Throttle Station.

The Flexball EM systems are the ideal choice for upgrading unreliable throttle controls. Compatible with a wide range of electronic marine engines, including Caterpillar, Cummins, Yanmar, FPT, Doosan, and Hyundai, these throttles are suitable for both pleasure and commercial vessels. Whether you own a trawler, pilot vessel, commercial fishing vessel, or tourism boat, Flexball systems offer reliability and performance.

The 4500-EM13 system is multivolt 9-32V. The actuator box is mounted within the engine room and connects electronically using fly-by-wire to the engine throttle and mechanically to the gearbox actuator.

The 4500-EM13 kit includes all components required for connection, except for the morse cable required to connect between the actuator box and the gearbox selector, which we advise be custom-made to specific lengths for the vessel.

All Flexball 4500-EM series throttles are supplied standard with a “start interlock” safety function to ensure engines will not start if the gearbox is in gear. This Italian-designed and built system from Turin, Italy, is a quality and reliable solution.

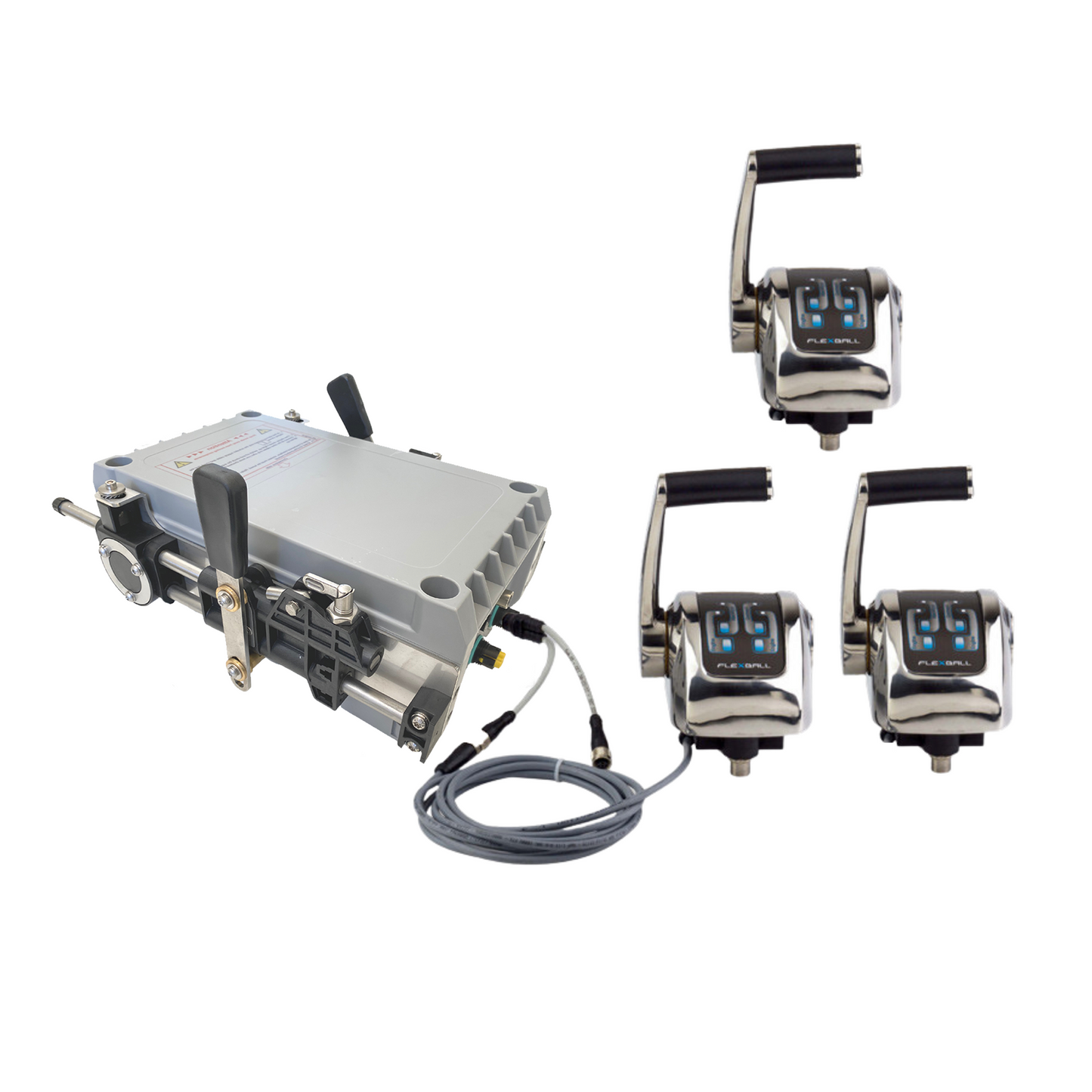

INCLUDED IN 4500-EM13 Kit

  • 1x Actuator Box - 9-32V

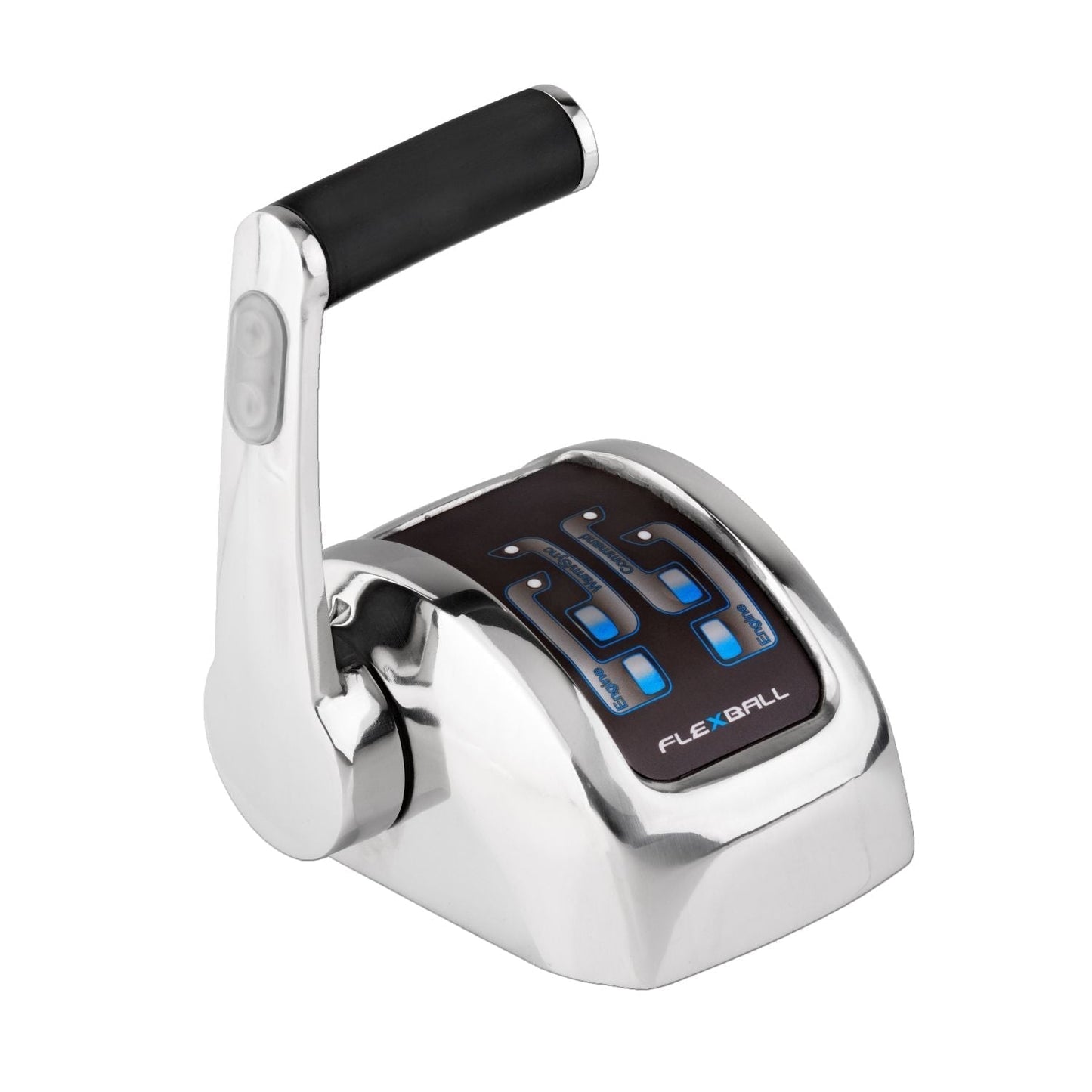

  • 3x 4500 Single Lever Throttle
  • 2x T-splitter
  • 1x Actuator Box Supply Plug
  • 3x 10m CANBus Extension Harness
  • 1x 5m Engine Throttle Harness
  • 1x Installation Manual

Download the Product Brochure



*PLEASE NOTE

This is a special order item and will take approximately 12 weeks lead time from date of order. We will be in touch with you to discuss your engine requirements in detail.


Note: Mechanical Morse cable required between actuator box and gearbox actuator is not included.

Note: photographs for illustration purposes only.

Note: Systems to suit sterndrives requiring trim controls please contact THT for a custom quote.
