Flexball 4500-EM12
If you don't know your Engine Throttle Input Type, please click here.

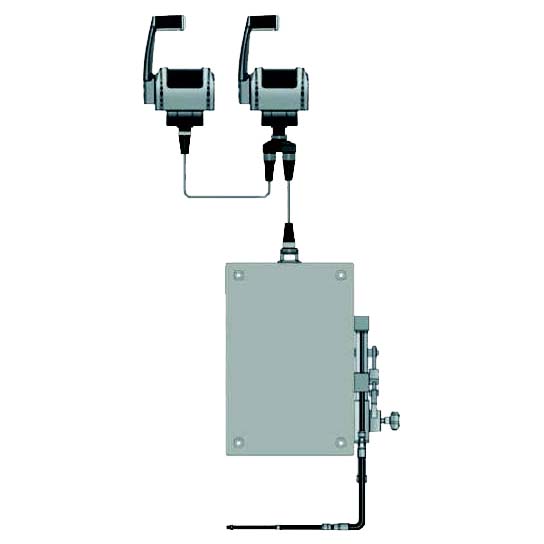

This system controls 1x Electronic Engine and 1x Mechanical Gearbox. It connects via CANBus to 2x Flexball 4500 Single Throttle Station.
The Flexball EM system is ideal for newer electronic engines paired with older mechanical actuated gearboxes. It works seamlessly with any make and model of electronic engine, supporting various throttle inputs.
The system includes one mechanical lever mounted on the actuator box, designed for smooth and reliable actuation of a push/pull style mechanical cable connecting to the gearbox. The EM actuator box can be mounted in the engine room, allowing for up to 5m of mechanical push/pull cable to connect to the gearbox actuator.
Gearbox control is managed through a mechanical actuator on the side of the Actuator box, where a short mechanical morse cable is connected which then connects to the actuator on the gearbox (Note: Morse Cable not included in the package). All mechanical control solutions have a “release” pin to allow for manual override at the actuator box in the event of an emergency, which is an excellent safety feature.

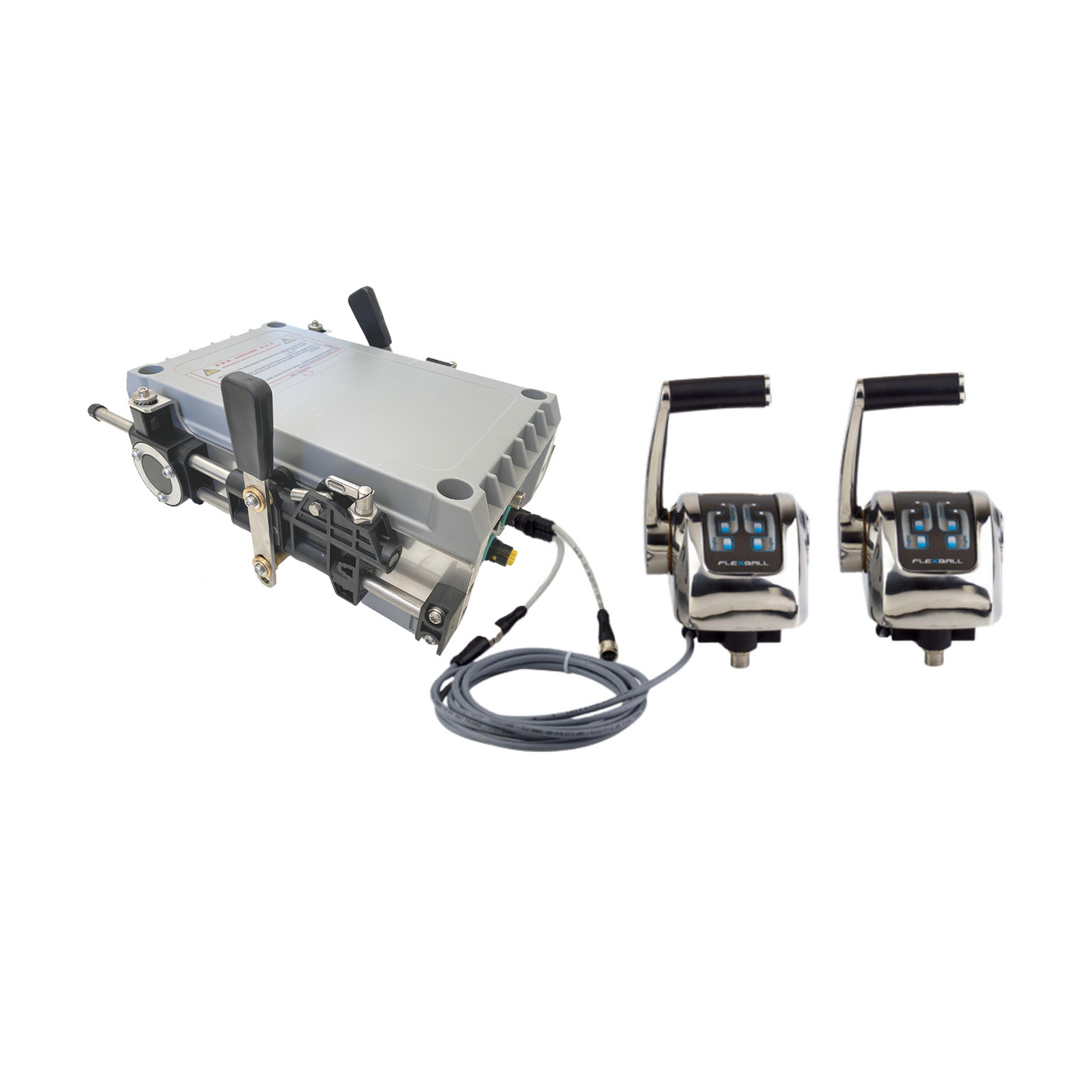

INCLUDED IN 4500-EM12 Kit
- 1x Actuator Box - 9-32V

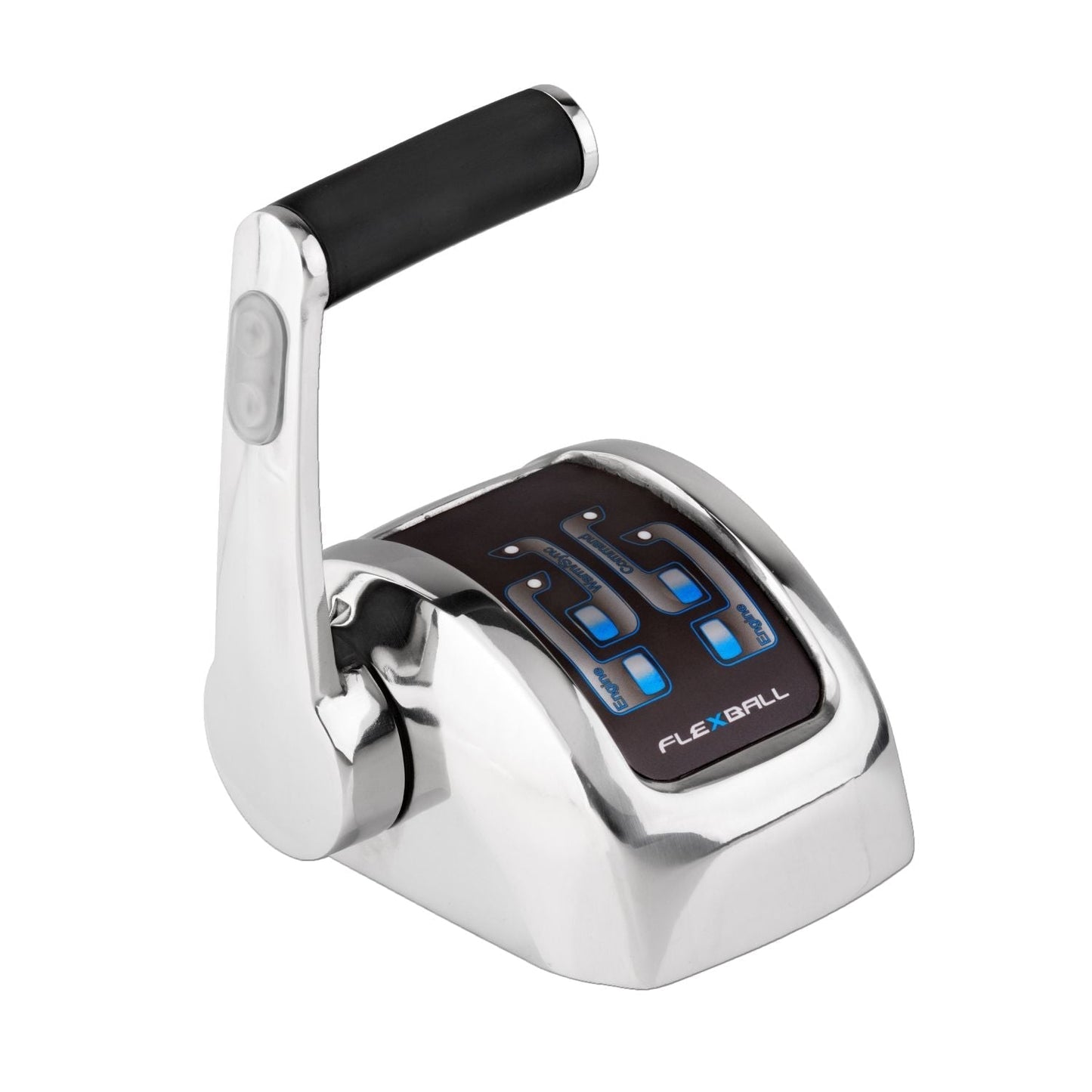

- 2x 4500 Single Lever Throttle
- 1 x T-splitter
- 1x Actuator Box Supply Plug
- 2x 10m CANBus Extension Harness
- 1x 5m Engine Throttle Harness
- 1x Installation Manual
Download the Product Brochure
*PLEASE NOTE
This is a special order item and will take approximately 12 weeks lead time from date of order. We will be in touch with you to discuss your engine requirements in detail.
Note: Mechanical Morse cable required between actuator box and gearbox actuator is not included.
Note: photographs for illustration purposes only.
Note: Systems to suit sterndrives requiring trim controls please contact THT for a custom quote.
